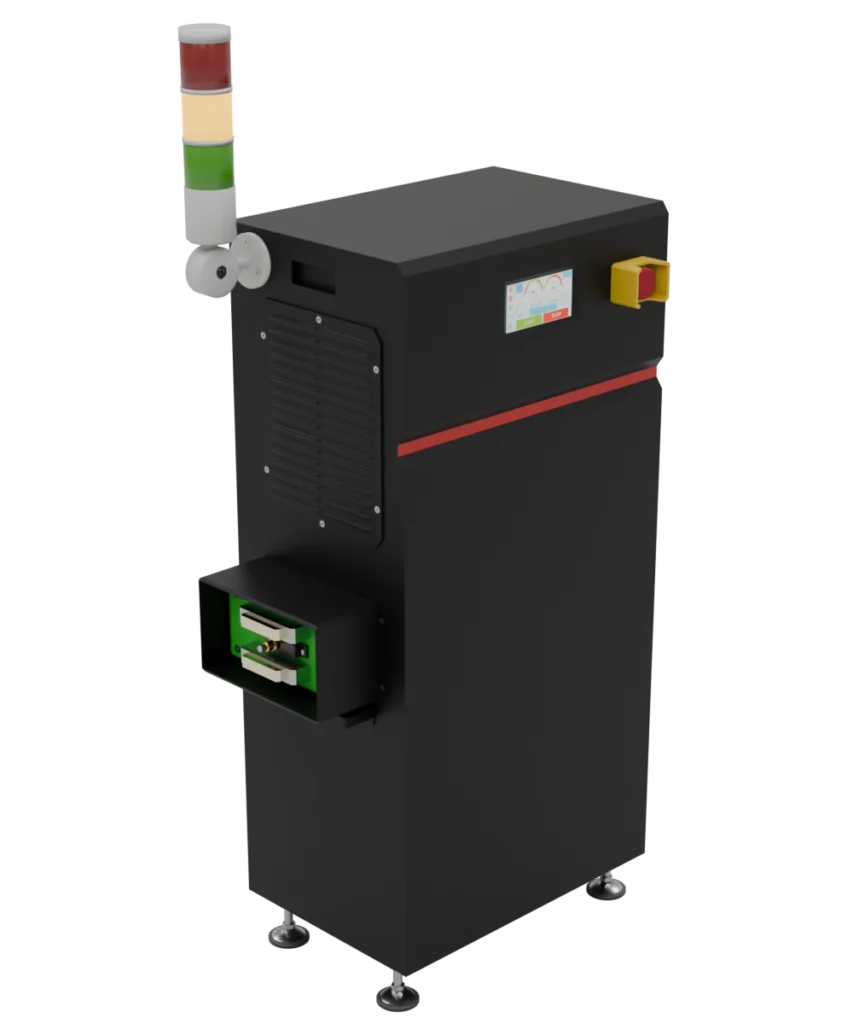

Zetha Series Standard Charging Station - 650W
ZETHA-CH-S-01
ZETHA-CH-S-01 is a front docking auto charging station allows AMR to dock and recharge automatically when battery is low.
Payload Handler: Lifting
Payload Handler: Towing – Lifting – Hooking
Payload Handler: Lifting
Payload Handler: Lifting
Payload Handler: Direct
Payload Handler: Lifting
GA-MS-S-50
GA-REF-S
SA-RIO-SW
SA-RIO-CW
SA-HG-TG
DFLEET
ZETHA-CH-S-01 is a front docking auto charging station allows AMR to dock and recharge automatically when battery is low.
ZETHA-CH-S-01 is a front docking auto charging station enable AMR to dock and recharge automatically.
Front docking design allows ZETHA-CH-S-01 to be placed in-line or off-line of main AMR route for charging flexibility.
Product Items List:
– 1 x ZETHA Standard Charging Station
– 1 x Power cord with UK standard
– 1 x Manual charging cable
How Does It Work:

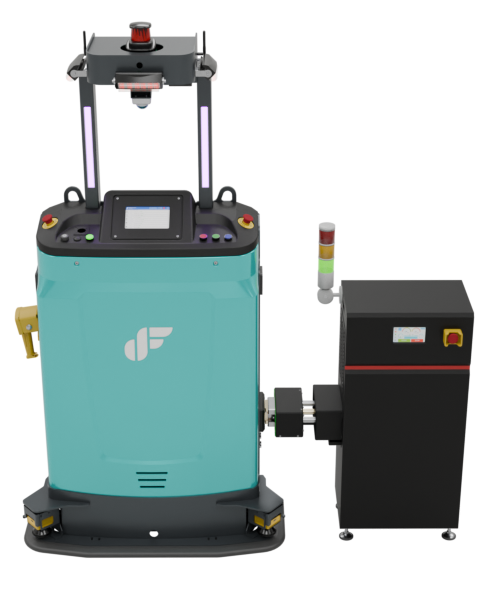

The figure below shows how AMR docks at the ZETHA Standard Charging Station.
DIMENSION | |
---|---|
Length | 628 mm |
Width | 420 mm |
Height | 424 mm |
Weight | 21 kg |
POWER | |
Input Voltage Range | 100 – 240 VAC |
Input Frequency | 50 ~ 60 Hz |
Output Power | 650 W |
Output Current | 27.1 A |
MISC. | |
Mounting Method | Floor Mount |
