Zamma TS Standard L20
ZAMMA-SL-TS-L20

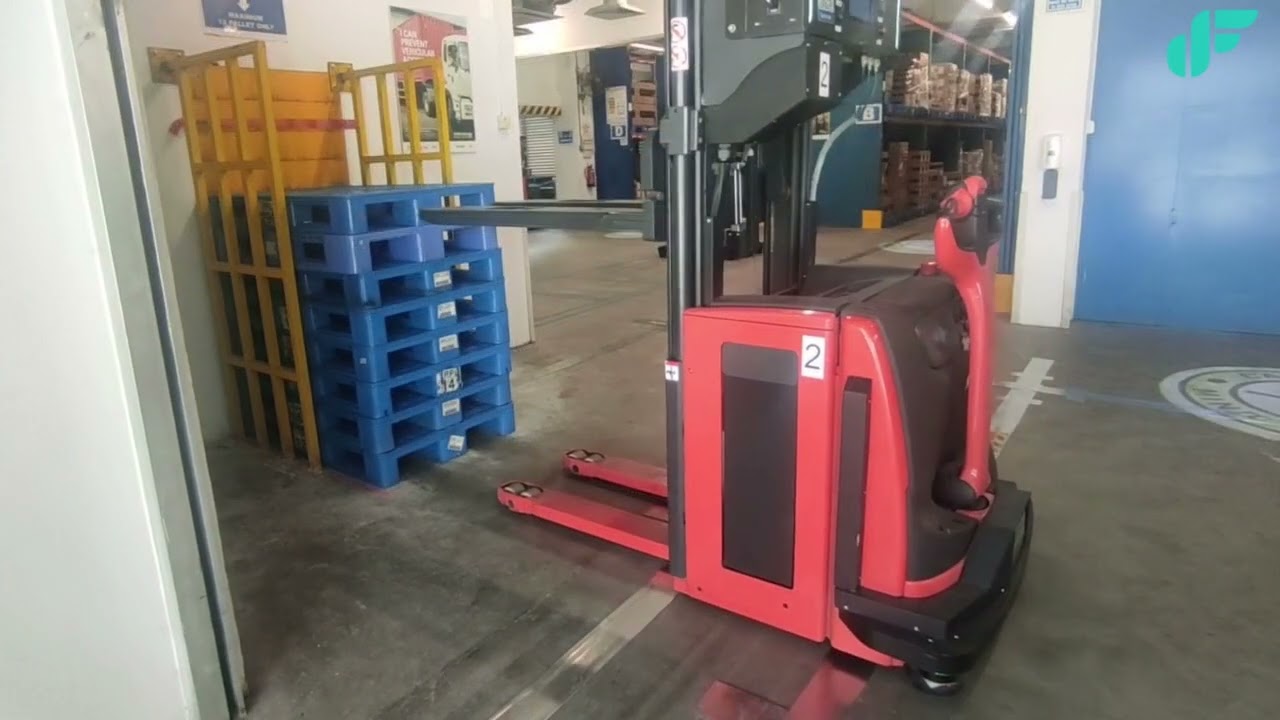

The Zamma Series Standard L20 AMR, an autonomous stacker and warehouse robot, autonomously transfers open pallets, and can lift a whopping 2.0 tonnes up to 2.7m high.
Navigating with Natural Feature Navigation (SLAM) and reflector support, it zips around at 1.6 m/s. Plus, its lithium battery keeps it going for up to 5 hours. It’s a perfect fit for warehouses, logistics, and manufacturing. Efficiency in material handling has never been this easy!
High Payload
Lift up to 2.0 Tonne
Lift Height
Lifting height reaching 2.7m
Aisle Width
Support minimum aisle width of 3m.
Pallet Type
Support open pallet type.
Top Speed
Capable of reaching speed up to 1.6 m/s.
Auto Charging
Automatically charges itself to ensure 24-hour continuous operation.
NavWiz Mapping
Allows user to draw and plan topological map for autonomous stacker.
NavWiz Task
Programming software using simple flowchart system.
Uniqueness At A Glance:
- Maximum payload of 2.0 tonne with max lifting height 2.7m
- Natural Feature Navigation (SLAM)
- Support Reflector for improved localization
- Up to 1.6 m/s speed
- Lithium Battery support up to 5 Hours Continuous operation
- Operate in Minimum Aisle of 3m
- Powered by DF Navwiz and DFleet web based Software
Dimension |
|
|---|---|
| Length | 2192 mm |
| Width | 1000 mm |
| Height | 2200 mm |
| Lift Height | 2770 mm |
| Clearance from Ground | 14 mm |
| Weight including Battery | 1670 kg |
| Width between reach legs | (230 – 330) mm |
| Fork Spread | (580 – 680) mm |
| Fork carriage length | 1150 mm |
| Front Tyre Size | Diameter: 230 mm Width: 90 mm |
| Rear Tyre Size | Diameter: 85 Width: 105 |
| Auxiliary Wheel Size | Diameter: 150 mm Width: 50 mm |
Payload |
|
| Lifting Payload | 2000 kg |
Driving and Navigation |
|
| Navigation System | Laser-based Natural Feature Navigation |
| Navigation Direction | Forward,Reverse, Left, Right |
| Turning Radius | 1642 mm |
| Aisle Width | 3000 mm |
| Minimum Safety Clearance of Width | 500 mm |
Performance |
|
| Maximum Speed | 1.6 m/s (6 km/h) |
| Stopping Accuracy | Laser Sensor (Natural Feature): ±50mm, ±2° Marker: ±20mm, ±2° |
| Maximum Gradeability | With load : 8 % Without load : 24 % |
Power |
|
| Running Time | 5 h |
| Charging Time | < 2 h |
| Charging Method | Manual Charge: Through cable Auto Charge: Dock charging through charging station |
| Battery Type | Li-ION |
| Battery Weight | 252 kg |
| Battery Voltage | 24 V |
| Battery Capacity | 208 AH |
Safety |
|
| Emergency Switch | 2 Unit |
| Safety Laser Scanner | 2 Unit |
| Obstacle sensor | 1 Unit |
Interface |
|
| Language | English |
| Operating System | NavWiz |
| User Interface | 7″, 1280×800 pixels, 262K color screen capacitive touchscreen Physical Buttons |
| Communications | 802.11 ac/a/b/g/n, 2.4GHz / 5GHz Dual-Band WiFi Open WPA & WPA2 Personal WPA & WPA2 Enterprise |
Environment |
|
| Operating Environment | Indoor usage with no excessive dust or corrosive gases |
| Floor Requirement | Level surface or concrete (no water, no oil, no dirt) |
| IP Class | IP20 |
