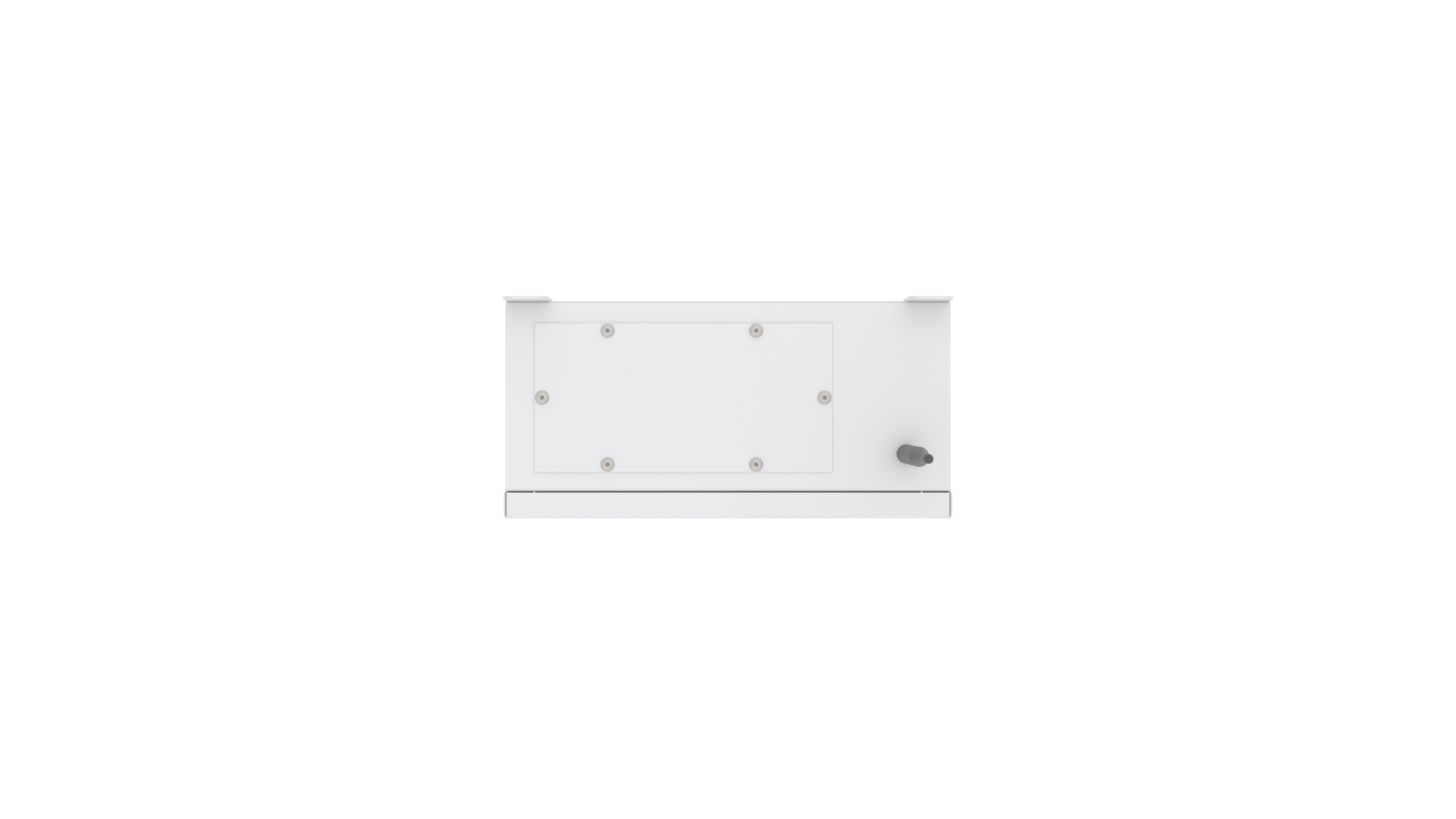

SA-RIO-SW-01 Wifi Controlled Remote I/O Module

SA-RIO-SW-01 is a device that utilizes WiFi to receive / send signal from / to the host (AMR system) and trigger On / Off of the output device that physically connected to it. This is the easiest way to link third party devices to AMR system wirelessly.

Features:

Easy to install: The Wifi Controlled Remote I/O Module has an easy configuration that can be installed on a desired device or infrastructure.
Flexible: It is easily implemented and adapted on devices required to communicate with your AGVs.
Efficient: Signals from the Wifi Controlled Remote I/O Module are transmitted seamlessly between the Fleet Management System and a particular device or infrastructure. The speedy sending and receiving of signals ensures that your workflow remains efficient at all times.

Infrastructure:

Features:

Dimension
Length	300 mm
Width	150 mm
Height	250 mm
Identification
Interface	WIFI
Supported Wireless Frequency Band	2.4 GHz
Maximum Number Of Controlled Device Using FMS	30
Maximum Input	4
Digital Input Logic Level	Dry Contact (Default) Logic level 1: close to DI COM Logic level 0: open Wet Contact Logic level 1: 10~30 VDC (0.8 mA max.) Logic level 0: 0~3 VDC (3 mA min.)
Isolation	3000 Vrms
Maximum Output	4
Output Contact Rating	3 A@ 30 VDC, 5A @ 250VAC
Operating System	NavWiz
Contact Rating	5 A
Protocol	Modbus/TCP, TCP/IP, DHCP, HTTP
Input Voltage	115~230 VAC
Input/Output Configuration	Output Sourcing 1A@24VDC *Total output current must not be more than 1A
Environment
Operating Environment	-40~70 °C / -40~158 °F
Humidity	0~95 % (non-condensing)
Storage Temperature	-40~85 °C / -40~185 °F

Remote I/O Module - Standard WIFI 0404

SA-RIO-SW-01
