SA-IC-LC-01 Lift Interface Controller

Features:

Easy to install: The easy configuration of the AMR Link Interface Controller means that it can easily be installed in the Lift Motor Control Room.
Large number of I/O ports: There are 12 input and output ports provided, giving you a large control over how you want to execute the desired control system.
Efficient: The Link Interface Controller transmits signals quickly between the lift and the AGV system. The quick sending and receiving of signals ensures that your AMR systems runs smoothly and efficiently.

Infrastructure:

Features:

Dimension
Length	400 mm
Width	150 mm
Height	350 mm
Identification
Interface	1 x RJ45 (Ethernet)
Maximum number of controlled device using FMS	10
Maximum Input	12
Digital Input Logic Level	Dry Contact (Default) Logic level 1: close to DI COM Logic level 0: open Wet Contact Logic level 1: 10~30 VDC (0.8 mA max.) Logic level 0: 0~3 VDC (3 mA min.)
Isolation	3000 Vrms
Maximum Output	12
Output Contact Rating	3A @ 30 VDC, 5A @ 250 VAC
Operating System	NavWiz
Contact Rating	5 A
Protocol	Modbus/TCP, TCP/IP, DHCP, HTTP
Input Voltage	115~230 VAC
Lift Operation Mode	Automatic/Manual
Input/Output Configuration	Output Sourcing 1A@24VDC *Total output current must not be more than 1A
Environment
Operating Environment	-40~70 °C / -40~158 °F
Humidity	0~95 % (non-condensing)
Storage Temperature	-40~85 °C / -40~185 °F

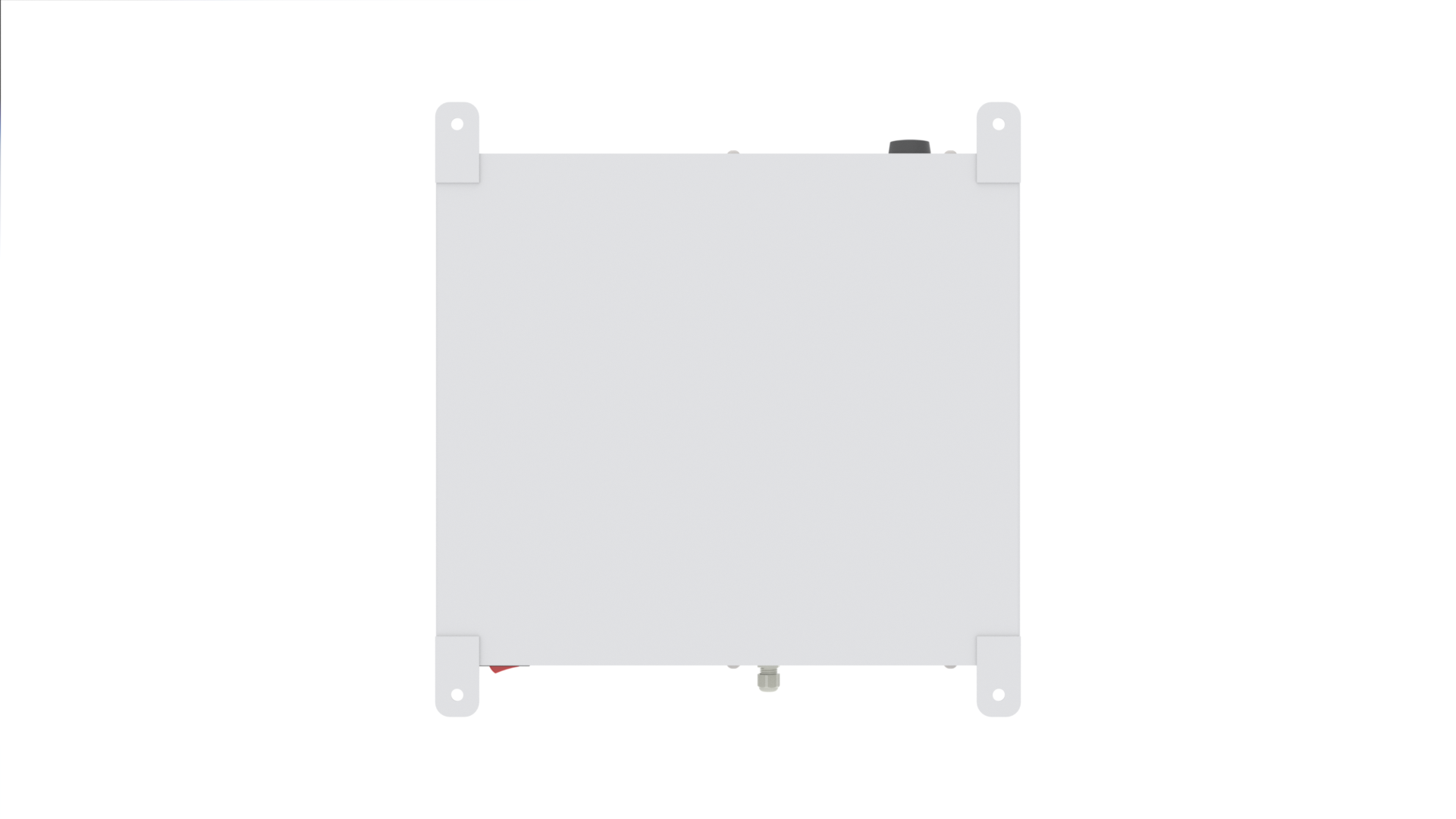

Lift Interface Controller - Standard LAN 1212
