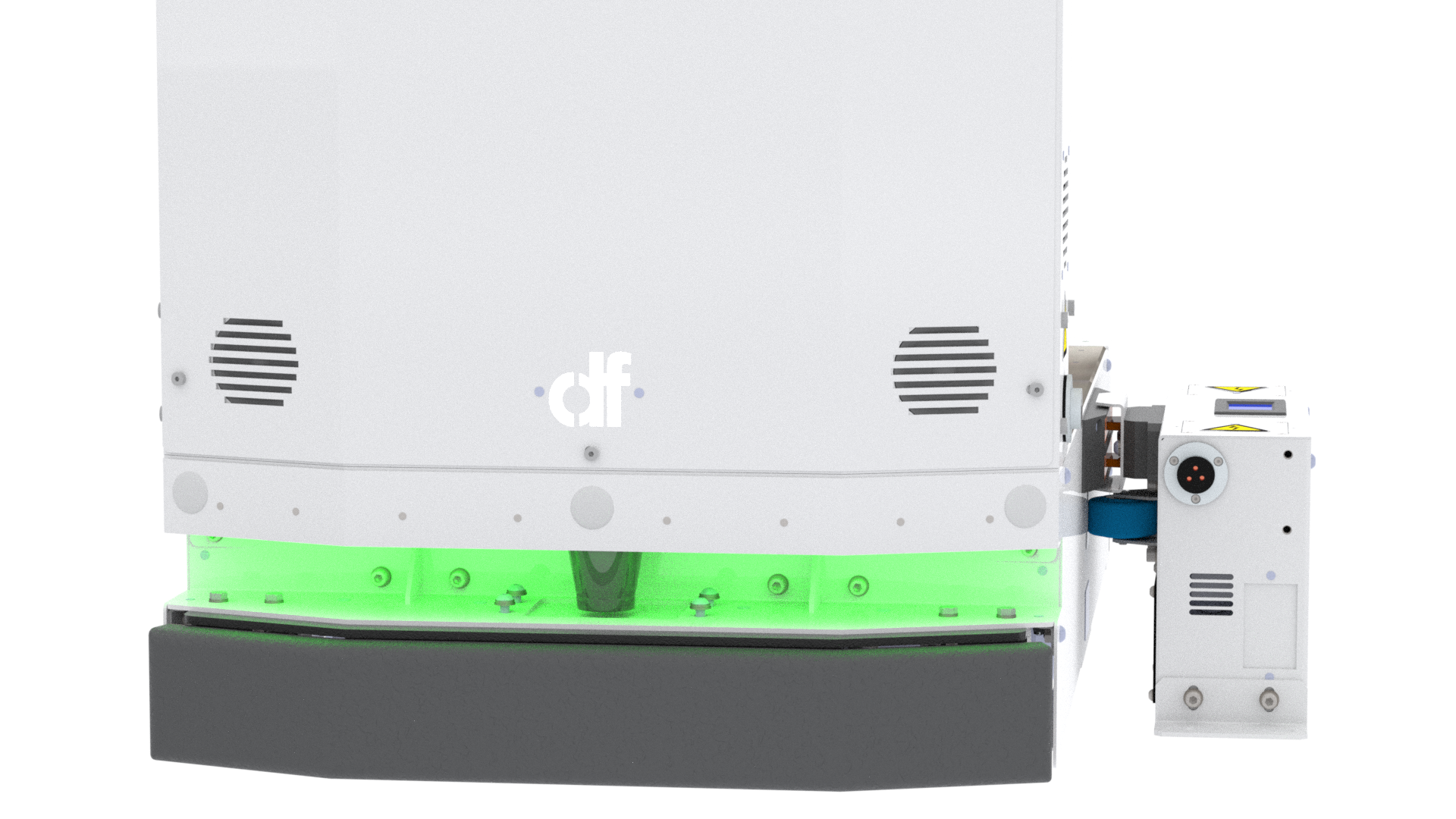

ZALPHA-CH-S-01 is a 350W side docking auto charging station allows AMR to dock and recharge automatically when battery is low.
ZALPHA-CH-S-01 is a side docking auto charging station enable AMR to dock and recharge automatically.
Side docking design allows ZALPHA-CH-S-01 to be placed in-line or off-line of main AMR route for charging flexibility.
Product Items List:
– 1 x Auto charge module
– 1 x Power cord with UK standard
– 1 x Manual charging cable
How Does It Work:

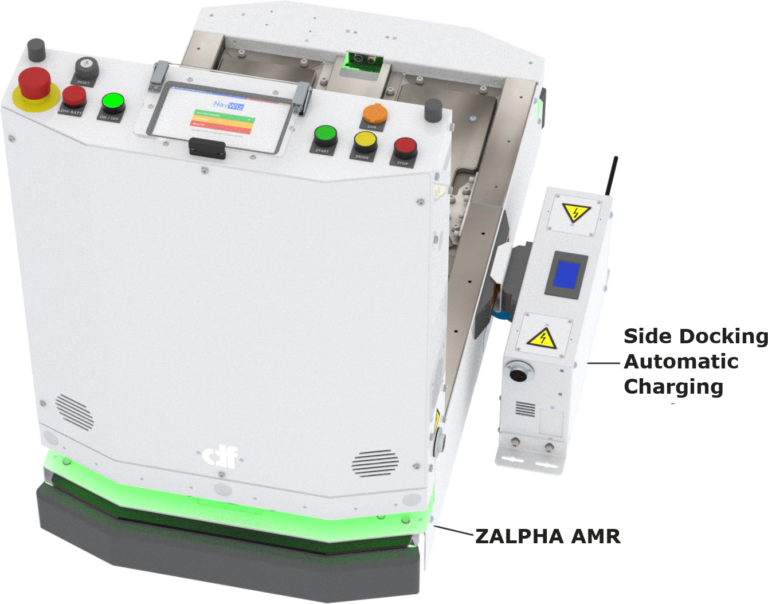

The figure below shows how AMR docks at the Side Docking Automatic Charging Station.
DIMENSION | |
---|---|
Length | 426 mm |
Width | 153 mm |
Height | 201 mm |
Weight | 5 kg |
POWER | |
Input Voltage Range | 200 – 240 VAC |
Input Frequency | 50 ~ 60 Hz |
Output Power | 360 W |
Output Current | 12.5 A |
MISC. | |
Mounting Method | Floor Mount |
ZALPHA-CH-S-01 Data Sheet
